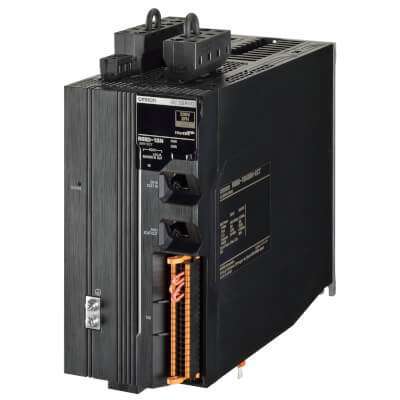

R88D-1SN15F-ECT
1S servo drive, EtherCAT type, 1.5 kW, 3~ 400 VAC
Sysmac general purpose servo
Ratings: 230 VAC from 50 W to 1.5 kW, 400 VAC from 400 W to 15 kW
- 23-bit resolution encoder
- Fast and secure screw-less push-in in all connectors
- Pluggable connectors for easy pre-wiring and system maintenance
- Direct wiring of I/O signals
- Embedded relay for direct motor brake control
- Improved loop control for overshoot and quick setting time
- Safety function built-in:
- Network Safe Torque Off: PLd (EN ISO 13849-1), SIL2 (IEC 61508)
- Hardwired Safe Torque Off: PLe (EN ISO 13849-1), SIL3 (IEC 61508)
Specifications
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated power | 1.5 kW |
| Product Weight (unpacked) | 3400 g |
Fits to
1S AC servo motor, 1.5 kW, 400 VAC, 3000 rpm, 4.77 Nm, absolute encoder, with brake
1S AC servo motor, 1.5 kW, 400 VAC, 3000 rpm, 4.77 Nm, absolute encoder
1S AC servo motor, 1.5 kW, 400 VAC, 2000 rpm, 7.16 Nm, absolute encoder, with brake
1S AC servo motor, 1.5 kW, 400 VAC, 2000 rpm, 7.16 Nm, absolute encoder
Accessories
| R88A-CN101C | 1S control I/O connector (CN1) |
| R88A-FI1S309-SE | 1S Servo RFI filter; 400 VAC , for 600 W to 3 kW drives |
| R88A-SC021S-E | 1S series cable clamp B. Used in 400 V drives and 230 V (from 1.5 kW to 3 kW) |
