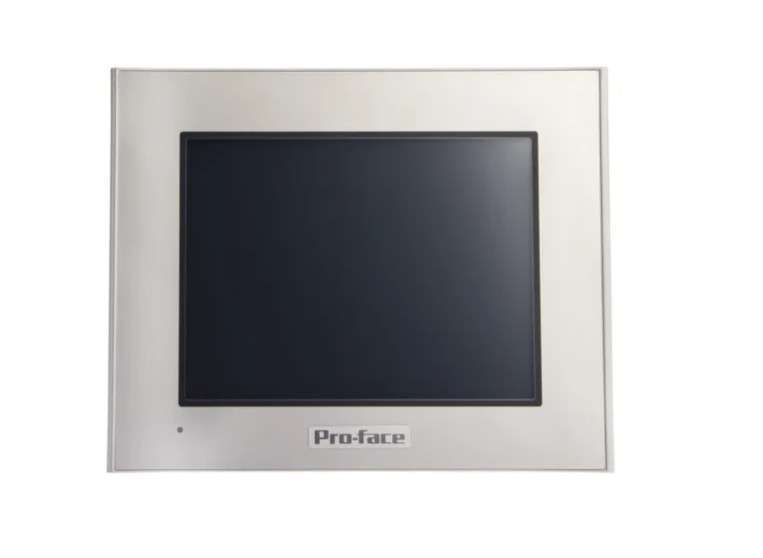

Màn hình Proface 5.7” LCD TFT GP4000 Series PFXGP4301TAD

GP-4000: Tiêu chuẩn Pro-face mới

Khả năng kết nối tốt nhất trong lớp, Chức năng HMI mạnh mẽ và Khả năng tương thích đầy đủ với các sản phẩm GP-Pro EX và GP3000 Pro-face kế thừa. Trình điều khiển HMI GP4000 cho phép bạn “nói chuyện” với PLC, hệ thống thị giác, bộ điều khiển chuyển động, bộ điều khiển nhiệt độ, biến tần, đầu đọc mã vạch và bộ truyền động ưa thích của bạn.

Thông số kĩ thuật Màn hình Proface PFXGP4301TAD

Thông số kỹ thuật chức năng

Display Type	TFT Color LCD
Display Size	5.7″
Resolution	320 x 240 pixels (QVGA)
Effective Display Area	W115.2 x H86.4 mm [W4.54 x H3.40 in.]
Display Colors	65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight	White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control	16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life	50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts	Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes	Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes	Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots	40 char. x 15 rows
16 x 16 dots	20 char. x 15 rows
32 x 32 dots	10 char. x 7 rows
8 x 8 dots	40 char. x 30 rows
Program Area	FLASH EPROM 132 KB (Equivalent to 15,000 steps)
Variable Area	SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory	FLASH EPROM 16 MB (including a logic program area)
Data Backup	SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy	±65 sec/month (deviation at room temperature and power is OFF)
Touch Panel Type	Resistive Film (analog)
Touch Panel Resolution	1,024 x 1,024
Touch Panel Service Life	1,000,000 times or more
Serial (COM1)	RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)	RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)	Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)	Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card	SD Card Slot x 1

Thông số kỹ thuật chung

Rated Input Voltage	DC 24V
Input Voltage Limits	DC 19.2 to 28.8V
Allowable Voltage Drop	5 ms or less
Power Consumption	10.5 W or less
In-Rush Current	30 A or less
Voltage Endurance	AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance	DC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature	0 to 55 °C (32 to 131 °F)
Storage Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Humidity	10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less – no condensation.)
Storage Humidity	10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less – no condensation.)
Dust	0.1 mg/m³ (10<sup>-7</sup> oz/ft³) or less (non-conductive levels)
Pollution Degree	For use in Pollution Degree 2 environment
Atmosphere	Free of corrosive gases
Air Pressure (altitude range)	800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance	IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance	IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Noise Immunity	Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Electrostatic Discharge Immunity	Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Grounding	Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals)
Structure	IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)
Cooling Method	Natural air circulation
Weight Approx.	0.8 kg [1.8 lb] or less (display unit only)
External Dimensions	W169.5 x H137 x D59.5 mm [W6.67 x H5.39 x D2.34 in.]
Panel Cut Dimensions	W156 x H123.5 mm [W6.14 x H4.86 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]
