Model

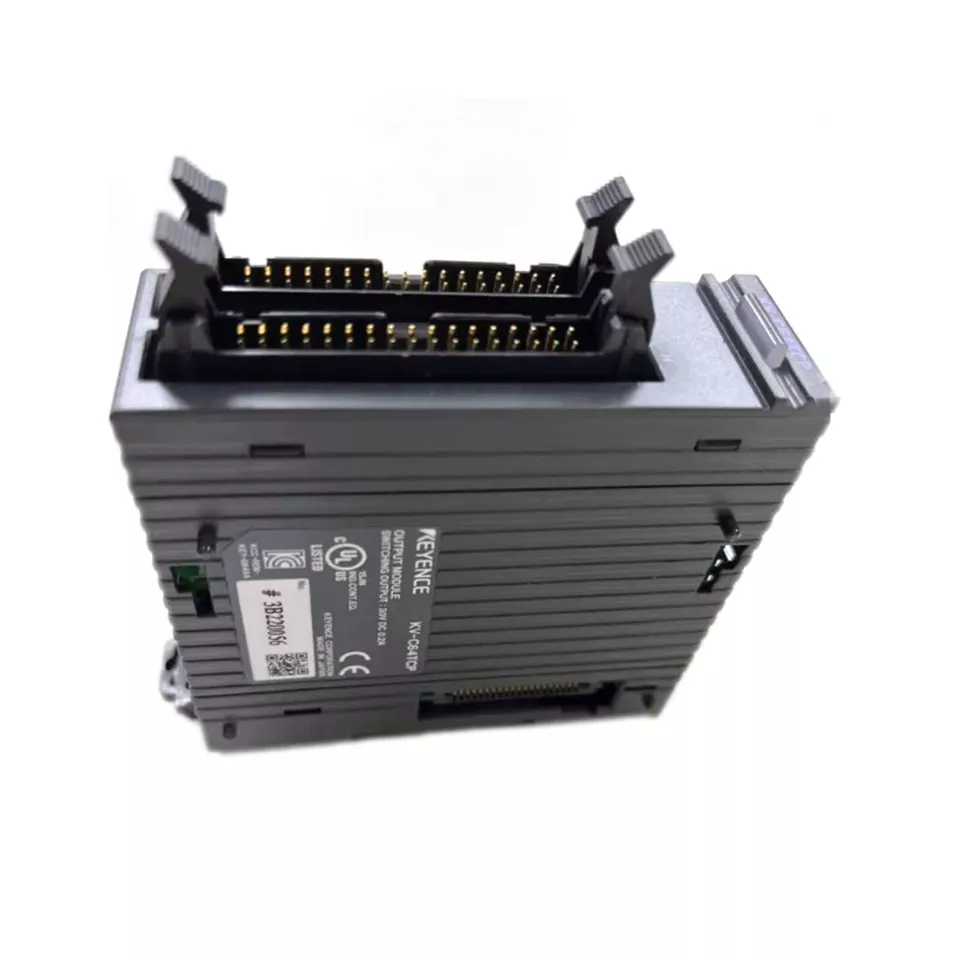

KV-C64TCP

Type

Output unit

External connection method

Connector (MIL standard)^*1

Output

Number of outputs

64 points

Output mode

Transistor (source)

Rated load

30 VDC, 0.2 A

Leakage current at OFF

100 μA or less

Residual voltage at ON

0.5 V or less

ON resistance

–

Common method

64 points/1 common (4 terminals)^*2

Operation time

OFF to ON: 50 μs or less,ON to OFF: 200 μs or less

Internal current consumption

100 mA or less

Weight

Approx. 140 g
