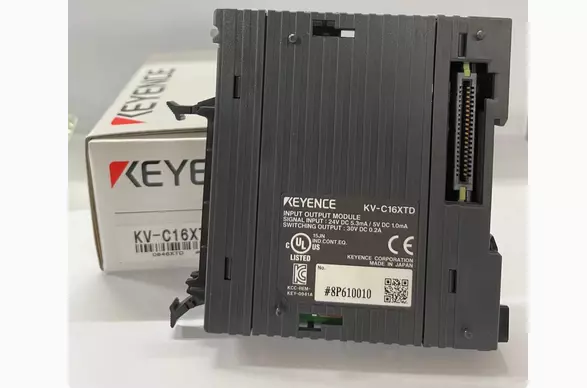

Model

KV-C16XTD

Type

I/O unit

External connection method

Connector (MIL standard)^*1

Input

Number of inputs

16 points

Input mode

24 VDC mode, 5 VDC mode

Maximum input voltage

26.4 VDC

Rated input voltage

24 VDC mode:24 VDC, 5.3 mA , 5 VDC mode: 5 VDC, 1 mA

Minimum ON voltage

24 VDC mode:19 V , 5 VDC mode: 3.5 V

Maximum OFF current

24 VDC mode: 1.5 mA

Maximum OFF voltage

5 VDC mode: 1.5 V

Common method

16 points/1 common (1 terminal)

Input time constant

25 μs/300 μs^*2/1 ms/10 ms

Input impedance

4.3 kΩ

Output

Number of outputs

16 points

Output mode

MOSFET (sink) (with overcurrent protection function)

Rated load

30 VDC, 0.2 A

Leakage current at OFF

100 μA or less

Residual voltage at ON

0.5 VDC or less

Common method

16 points/1 common (1 terminal)

Operation time

OFF to ON:100 μs or less ,ON to OFF: 300 μs or less

Internal current consumption

40 mA or less

Weight

Approx. 110 g
