Model

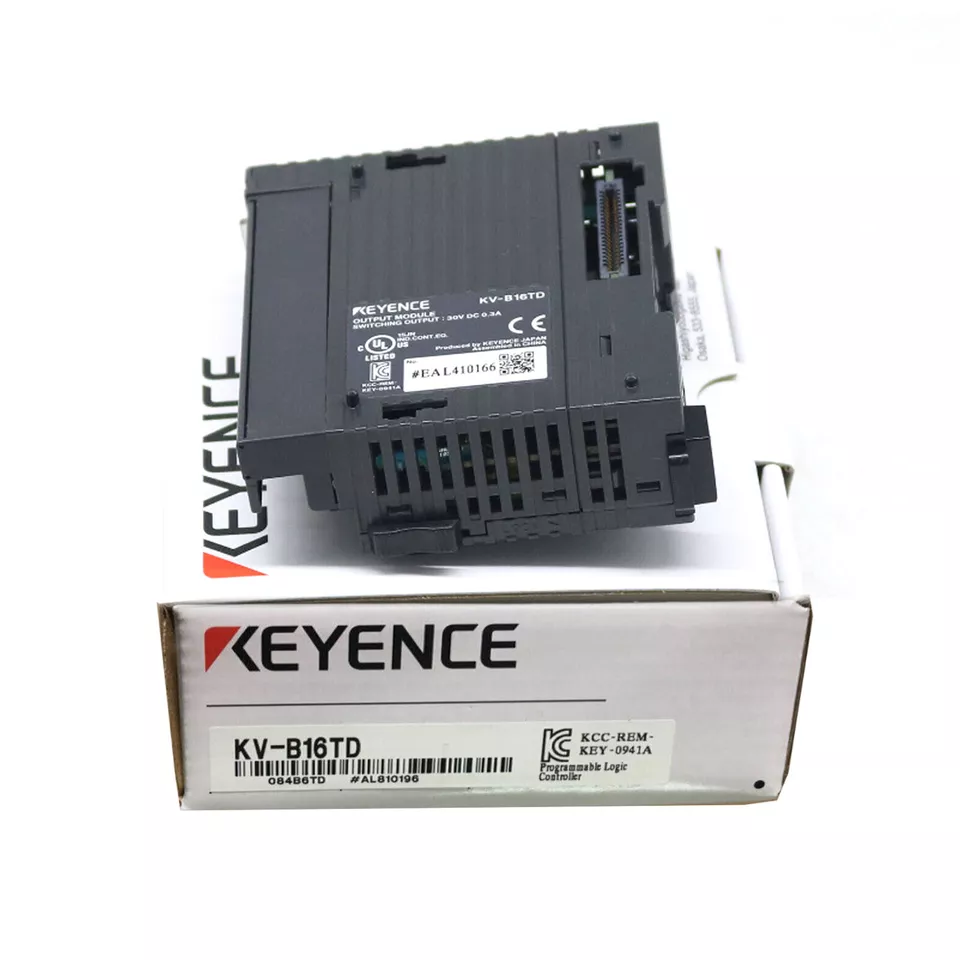

KV-B16TD

Type

Output unit

External connection method

Removable terminal block

Output

Number of outputs

16 points

Output mode

MOSFET (sink) (with overcurrent protection function)

Rated load

30 VDC, 0.3 A

Leakage current at OFF

100 μA or less

Residual voltage at ON

0.5 V or less

ON resistance

–

Common method

16 points/1 common (2 terminals)^*1

Operation time

OFF to ON: 100 μs or less,ON to OFF: 300 μs or less

Internal current consumption

45 mA or less

Weight

Approx. 130 g
