Model

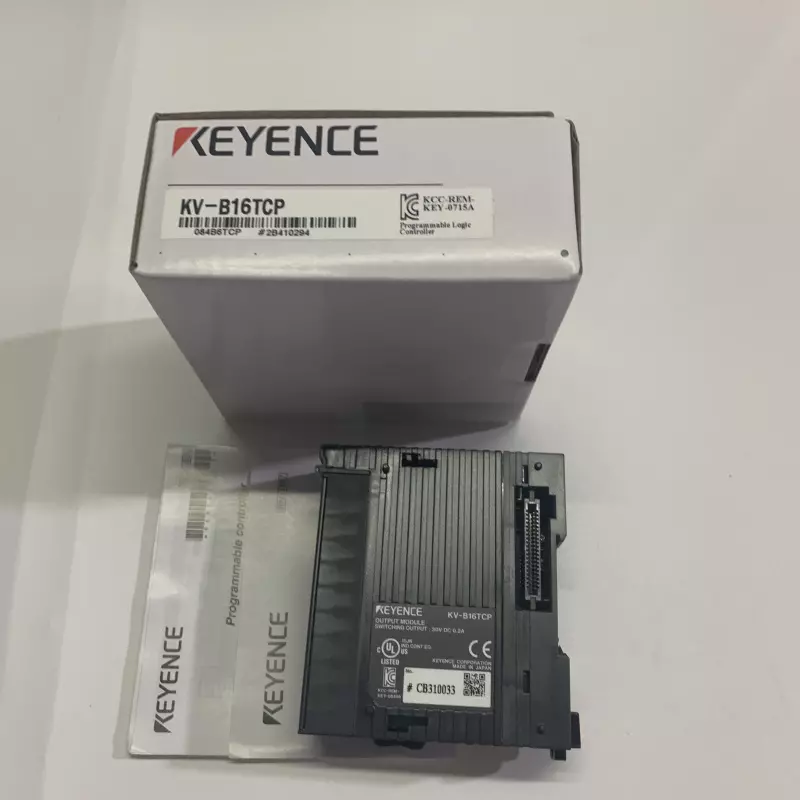

KV-B16TCP

Type

Output unit

External connection method

Removable terminal block

Output

Number of outputs

16 points

Output mode

Transistor (source)

Rated load

30 VDC, 0.2 A

Leakage current at OFF

100 μA or less

Residual voltage at ON

0.5 V or less

ON resistance

–

Common method

16 points/1 common (2 terminals)^*1

Operation time

OFF to ON: 10 μs or less,ON to OFF: 200 μs or less

Internal current consumption

30 mA or less

Weight

Approx. 130 g
