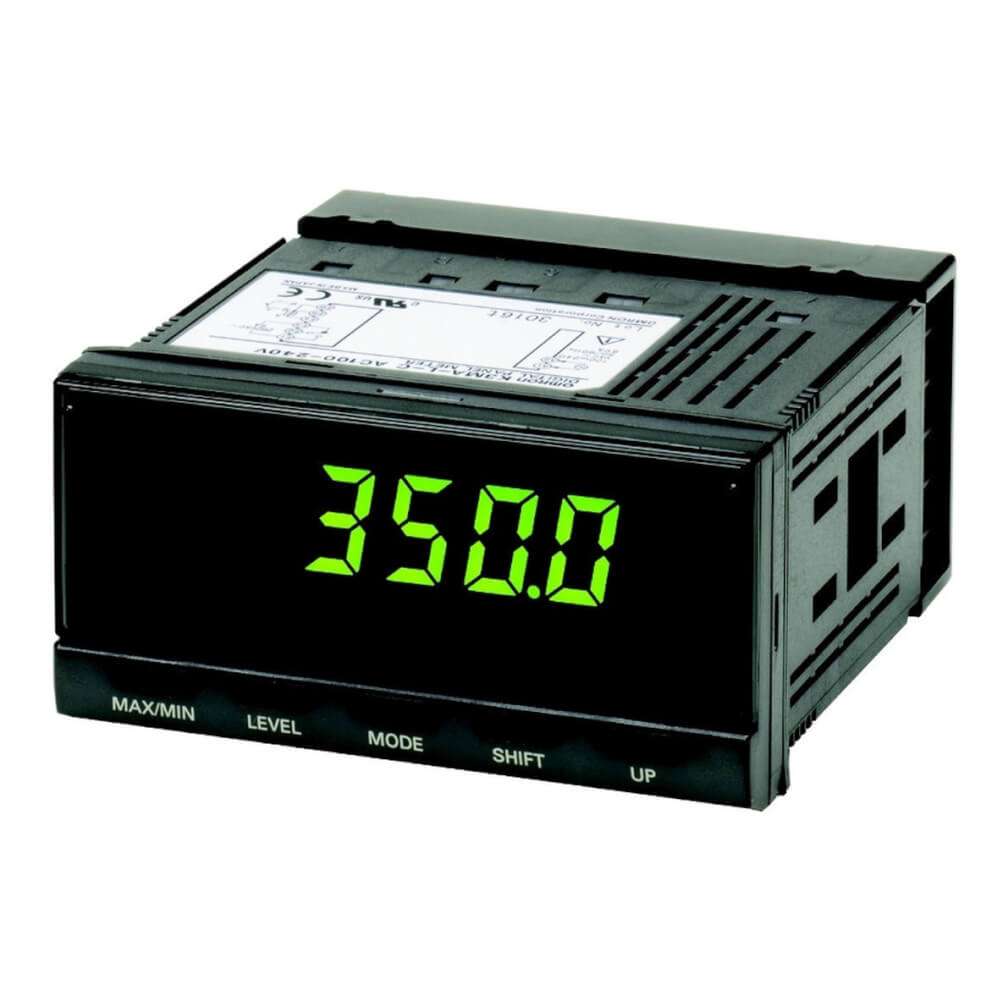

K3MA-L-C 24VAC/DC
Temperature meter, DIN 96×48 mm, color change display, thermocouple/ RTD input, 1C/O relay output, 24 VAC/DC
Highly visible LCD display with 2-colour (red and green) LEDs
The K3MA-L is a temperature meter with a supply voltage of either 100 to 240VAC or 24VAC/VDC. Both are equipped with the same quality display and have the same short depth of 80mm.
- DIN-size of H 48 x W 96mm
- Highly visible, negative transmissive back-lit LCD display
- 14.2mm-high characters
- 4 digits
- Front-panel IP66
Specifications
| Type | Temperature |
| Input range | -200° to 1800° C |
| Size | 1/8 DIN (96 x 48 mm) |
| Number of digits | 4 |
| Output type | Relay |
| Contact description | SPDT |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Accuracy | +/- 0.1% full scale |
| Sample rate | 500 ms |
| Features | Colour change display |
| Width | 96 mm |
| Height | 48 mm |
| Depth | 80 mm |
| Temperature input type | B, E, J, JPt100, K, L, N, Pt100, R, S, T, U |
