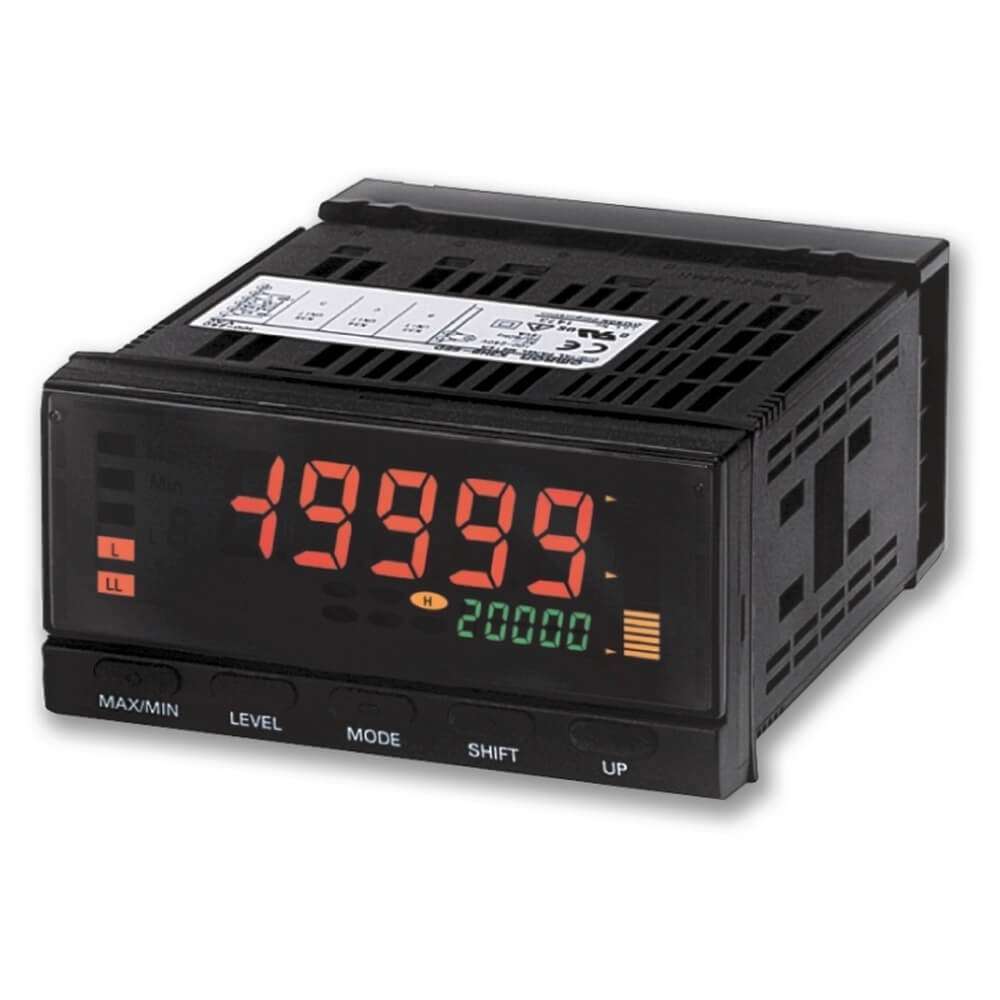

K3HB-SSD 24VAC/DC

Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Linear sensor/transducor input, DC process inputs scaled 0 to 5v, 1 to 5V, -5 to +5V, -10 to +10V, 0 to 20mA or 4 to 20mA 24 VAC

Linear sensor indicator capable of high-speed response

These indicators with analogue input feature a clear and easy-to-use colour-change display. All models are equipped with an IP66 housing. K3HB series is high speed, with a sample rate of 2,000Hz.

Position meter indication for easy monitoring
Optional DeviceNet, RS-232C, RS-485
Double display, with 5 digits, in two colours
Dimensions: H 48 x W 96 x D 100mm

Harsh environment

Control products can be subjected to harsh environments where they can be splashed during the process or covered in dust or get warm through their location. The E5CN, E5CSV, H7CX, H5CX and K3HB all feature a NEMA4X (IP66 equivalent) front panels so are suitable for the use in these applications, also the low profile fascia means that they are less prominent in the front of the panel and so less likely to become dirty.

Specifications

Type	Linear sensor
Input type	DC current, DC voltage
Input range	-10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Size	1/8 DIN (96 x 48 mm)
Number of digits	5
Supply voltage AC	20.4-26.4 V
Supply voltage DC	20.4-26.4 V
Accuracy	+/- 0.1% full scale
Sample rate	0.5 ms
Features	Colour change display
Width	96 mm
Height	48 mm
Depth	95 mm
