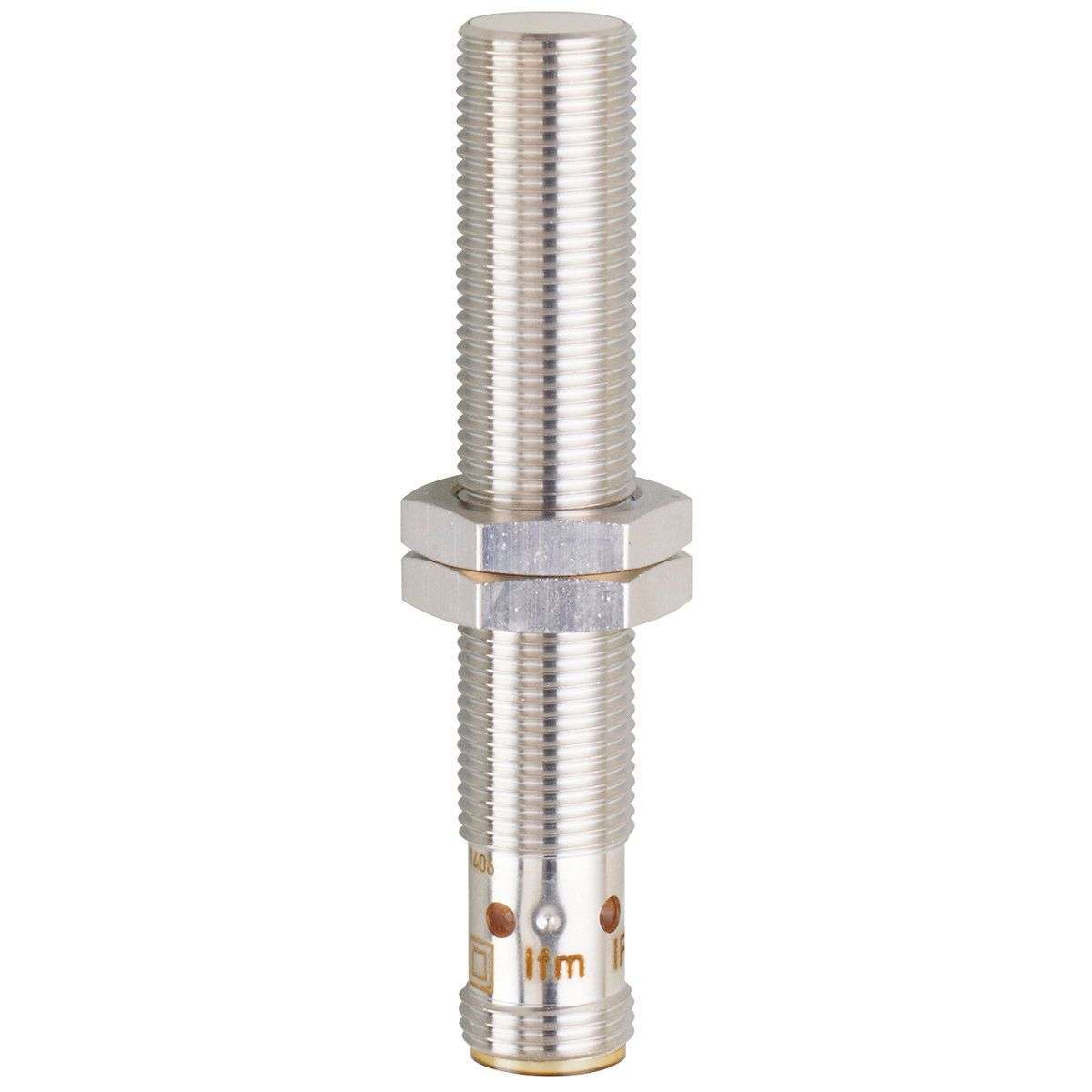

IFC237 Inductive sensor
IFK3004BBPKG/US-104
- For use in machine tools and metalworking
- Resistant to oils and coolants
- Long sensing range for high uptime
- Clearly visible indication of the switching status
- Permanently legible laser type label
Thông số kĩ thuật
| Product characteristics | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP | ||||||||||||
| Output function | normally open | ||||||||||||
| Sensing range [mm] | 4 | ||||||||||||
| Housing | threaded type | ||||||||||||
| Dimensions [mm] | M12 x 1 / L = 70 | ||||||||||||
| Application | |||||||||||||
| Special feature | Gold-plated contacts; Increased sensing range | ||||||||||||
| Application | Use in machine tools, coolants and lubricants | ||||||||||||
| Electrical data | |||||||||||||
| Operating voltage [V] | 10…30 DC | ||||||||||||
| Current consumption [mA] | < 10 | ||||||||||||
| Protection class | II | ||||||||||||
| Reverse polarity protection | yes | ||||||||||||
| Outputs | |||||||||||||
| Electrical design | PNP | ||||||||||||
| Output function | normally open | ||||||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||||||
| Permanent current rating of switching output DC [mA] | 100 | ||||||||||||
| Switching frequency DC [Hz] | 700 | ||||||||||||
| Short-circuit protection | yes | ||||||||||||
| Overload protection | yes | ||||||||||||
| Detection zone | |||||||||||||
| Sensing range [mm] | 4 | ||||||||||||
| Operating distance [mm] | 0…3.24 | ||||||||||||
| Increased sensing range | yes | ||||||||||||
| Accuracy / deviations | |||||||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||||||||||||
| Hysteresis [% of Sr] | 3…15 | ||||||||||||
| Switch point drift [% of Sr] | -10…10 | ||||||||||||
| Operating conditions | |||||||||||||
| Ambient temperature [°C] | -25…70 | ||||||||||||
| Protection | IP 68; (“Coolant”) | ||||||||||||
| Tests / approvals | |||||||||||||
| EMC |
| ||||||||||||
| MTTF [years] | 1528 | ||||||||||||
| UL approval |
| ||||||||||||
| Mechanical data | |||||||||||||
| Weight [g] | 30.2 | ||||||||||||
| Housing | threaded type | ||||||||||||
| Mounting | flush mountable | ||||||||||||
| Dimensions [mm] | M12 x 1 / L = 70 | ||||||||||||
| Thread designation | M12 x 1 | ||||||||||||
| Materials | brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated | ||||||||||||
| Displays / operating elements | |||||||||||||
| Display |
| ||||||||||||
| Accessories | |||||||||||||
| Accessories (supplied) |
| ||||||||||||
| Remarks | |||||||||||||
| Pack quantity | 1 pcs. | ||||||||||||
| Electrical connection – plug | |||||||||||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||||||||||||
