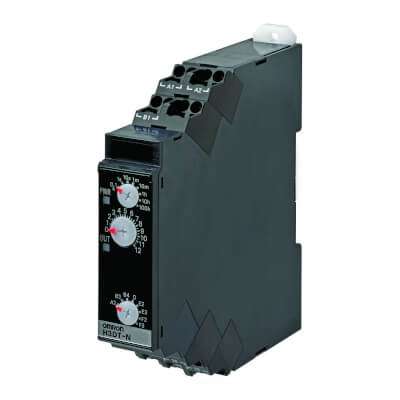

H3DT-N2 24-240VAC/DC
Timer, DIN rail mounting, 17.5mm, Multifunction, 0.1s-1200h, 2 x SPDT, 5 A, 24-240 VAC/DC, Push-in terminal
DIN 17.5-mm-wide slim timers with Push-
in plus Technology for in-panel applications
- Helps save space and reduces work in control panels
- Slim timers (17.5-mm width) with two sets of contacts: One of the slimmest timers worldwide
- Reduces power consumption (active power) by up to 60% to help reduce heat generation in control panels
- Certified for maritime standards (LR/DNV GL)
- RoHS compliant
Specifications
| Type | Analog |
| Installation type | DIN Rail |
| Functions | Multi-functional |
| Size | 17.5 mm |
| Terminal | Push-in |
| Operating mode | Cumulative (Interval), Cumulative (ON Delay), Flicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), Interval (Signal OFF), OFF Delay (Signal), ON Delay (Power ON Start) |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.1 s – 1200 h |
| Supply voltage AC | 24-240 V |
| Supply voltage DC | 24-240 V |
