Model

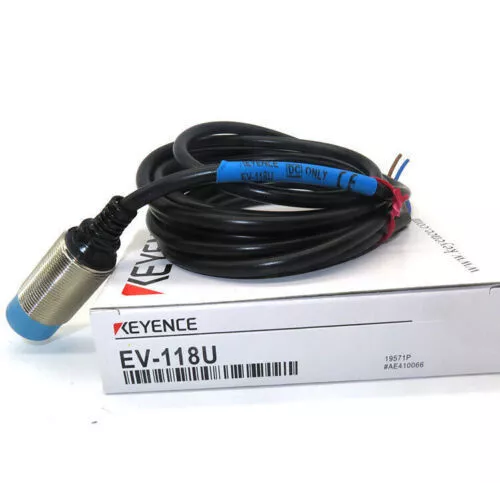

EV-118U

Type

Non-shielded

Shape

M18

Detecting distance

15 mm 0.59″ ±10%

Detectable object

Ferrous metals (see Characteristics for nonferrous metals)

Standard target
(iron, t=1 mm 0.04″)

50 x 50 mm 1.97″

Hysteresis

20% max. of detecting distance, within -10 to +70°C 14 to 158°F

Response frequency

350 Hz

Operation mode

N.O.

Temperature characteristics

±10% max. of detecting distance,
within -10 to +70°C 14 to 158°F

Control output
(switching capacity)

5 to 200 mA

Protection circuit

Reversed polarity, short-circuit, surge voltage

Cable length

2 m 6.6′

Rating

Power voltage

12 to 24 VDC, Ripple (P-P) 20 % or less

Current consumption (leakage
current)

Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6′ cable)

Residual voltage

Residual voltage: 3.6 V max. (with 2-m 6.6′ cable)

Environmental resistance

Enclosure rating

IP67

Ambient temperature

-25 to +80 °C -13 to 176 °F (No freezing)

Relative humidity

35 to 95 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s², 3 times in each of the X, Y, and Z directions

Case material

Nickel-plated brass

Accessories

Nut × 2, toothed washer × 1, instruction manual

Weight

Approx. 140 g
