Model

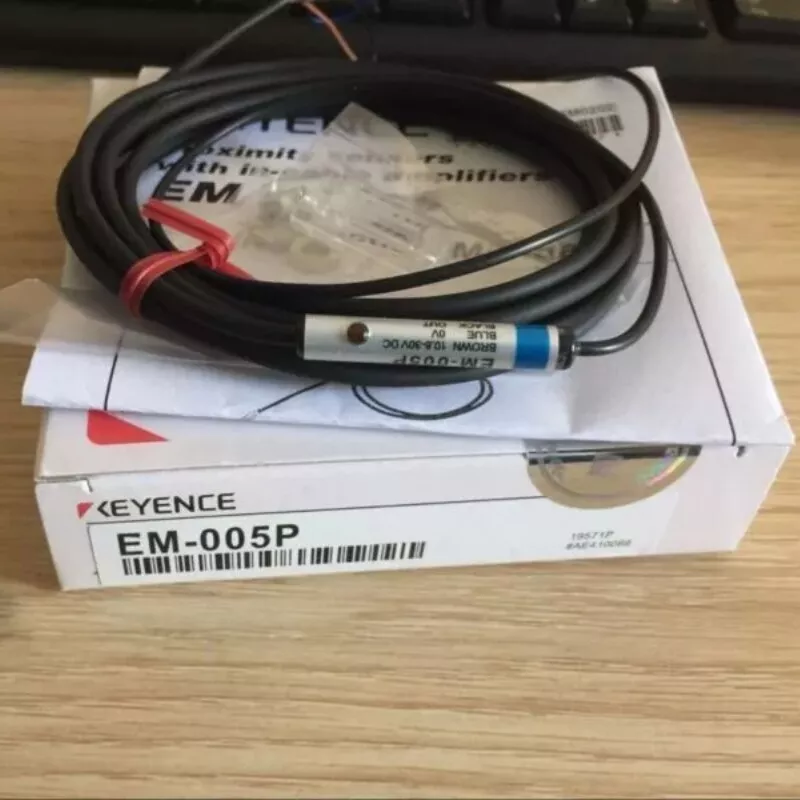

EM-005P

Type

Shielded

Shape

M5 Threaded

Detecting distance

1.0 mm 0.04″ ±15%

Detectable object

Ferrous metals (see Characteristics for non-ferrous metals)

Standard target
(iron, t=1 mm 0.04″)

5 x 5 mm 0.20″

Hysteresis

10% max. of detecting distance

Response frequency

1.2 kHz

Operation mode

N.O.

Temperature characteristics

±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C 14 to 158°F

Display indicator

Red LED

Output

PNP

Control output

PNP: 200 mA (30 V) max., Residual voltage: 1 V max.

Housing

Stainless steel

Rating

Power voltage

10.8 to 30 VDC, Ripple (P-P) 10 % or less^*1

Current consumption

20 mA or less

Environmental resistance

Enclosure rating

IP67

Ambient temperature

-25 to +80 °C -13 to 176 °F (No freezing)

Relative humidity

35 to 95 % RH (No condensation)

Weight

Approx. 40 g (including nuts and 2-m 6.6′ cable)
