Model

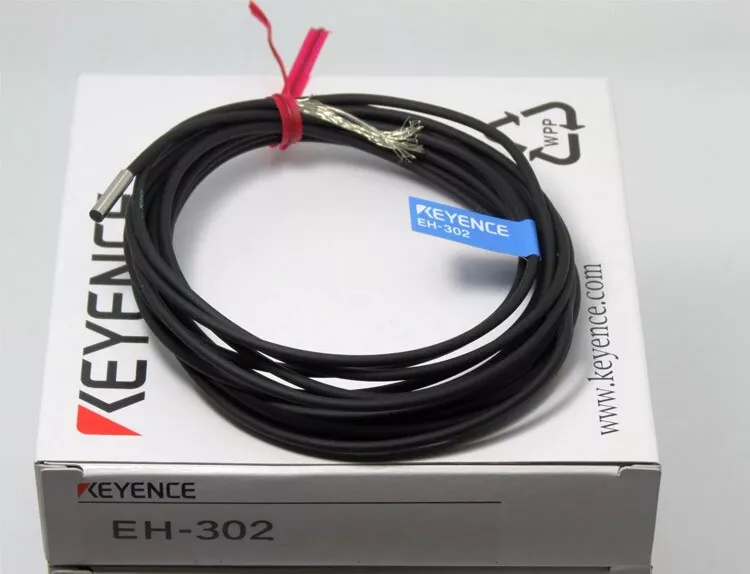

EH-302

Type

Standard , Shielded , Cylindrical

Detectable object

Ferrous metals (see Characteristics for nonferrous metals)

Standard target (iron, t=1 mm 0.04″)

5 x 5 mm0.02″

Stable detecting range

0 to 0.6 mm0.02″

Maximum detecting distance

1.2 mm0.05″

Hysteresis

0.04 mm0.002“

Repeatability

0.002 mm0.00008″

Temperature characteristics

-10 to +20% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F

Environmental resistance

Enclosure rating

IP67

Ambient temperature

-10 to +60 °C 14 to 140 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Weight

Approx. 29 g (including 3-m 9.8′ cable)
