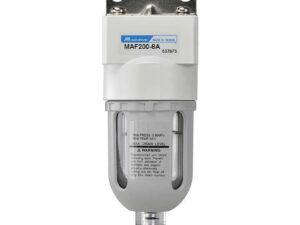

Filter: To eliminate particle, condensation and impurities in the compressed air.
Regulator: Reduce the mainline compressed air to safe and usable pressures and maintain constant operating pressure.
Lubricator: Injects lubricant into an air line to provide lubrication to the internal working parts of pneumatic tools or components.
| Bore No. | 8A, 10A |
|---|
| Port size | 1/4, 3/8 |
|---|
| Medium | Air |
|---|
| Operating pressure range (※) | 0.05~1 MPa |
|---|
| Proof pressure | 1.5 MPa |
|---|
| Regulated pressure range | 0.05~0.85 MPa |
|---|
| Ambient temperature | －5~＋60℃ (No freezing) |
|---|
| Filter element | Standard:5μm Option:40μm |
|---|
| Drain capacity | 30 cm3 |
|---|
| Attachment | Pressure gauge (PG-40), bracket |
|---|
| Weight | 445 g |
|---|
| Remark | ※Standard Unit contains semi-auto-drain function when
operating pressure below 0.05 MPa. |
|---|
