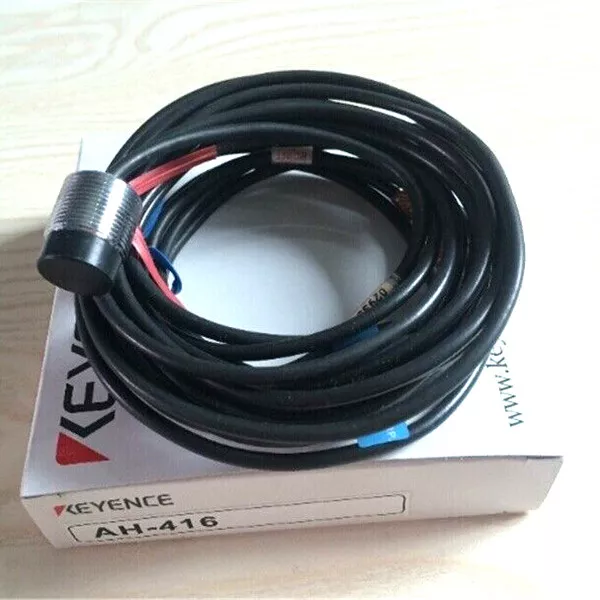

Model

AH-416

Type

General-use sensor head

Amplifier unit

AS-440-05

Shape

Cylindrical and threaded, diameter: 14.5

Measuring range

0 to 5 mm 0.20″

Analog output voltage

Output voltage

0 to 5 V

Straight line range

―

Impedance

100 Ω

Resolution

0.1% of F.S.

Linearity

±1% of F.S.

Response

3.3 kHz (-3 dB)

Temperature
fluctuation

Sensor head

0.03% of F.S./°C^*1

Temperature characteristics

Amplifier unit

0.05% of F.S./°C^*1

Rating

Power voltage

110/120/220/240 VAC ±10 %, 50/60 Hz

Power consumption

5VA

Environmentalresistance

Enclosure rating

Sensor head

IP67

Operating ambient temperature

-10 to +60°C 14 to 140°F, No freezing

Amplifier unit

0 to +50°C 32 to 122°F

Environmental resistance

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions

Weight

Sensor head

Approx 75 g

Weight (including cord)

Amplifier unit

Approx 320g
